One to many Form question

#1 · March 17, 2023, 9:18 am

Greetings,

I am trying to solve for the following.

I have a list of all of our branches(branch list) and part of that list is a lookup column called region(Region list). Each item in this list is associated to a region.

I also have a list called branch status that looks up to the branch (Branch Status List)

I need a way to build a lookup in the branch status list to grab a region and then have that select all branches associated with that region.

The ultimate goal is to have a form that has a selection by either region (which would select all branches in that region ) OR by selecting the individual branch.

#2 · March 20, 2023, 5:49 pm

Hi @kevin-dornsouthstatebank-com,

We can configure cascaded lookup settings in ‘Branch’ NITRO lookup column to show filtered values in column drop-down, based on selected ‘Region’ in NITRO Forms.

Please navigate to NITRO Forms designer of ‘Branch Status’ list -> Create a NITRO Lookup column pointing to ‘Region’ list as shown -> Drag and drop this column on to the NITRO Form.

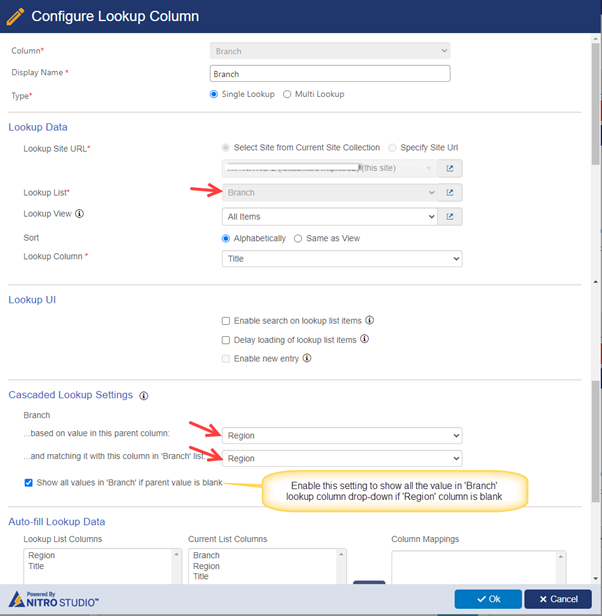

Edit the lookup column pointing to ‘Branch’ list and configure cascaded lookup settings as shown -> Apply the settings.

Publish NITRO Forms and check the result.

Uploaded files:
